Grey Nuova Mapa Telescopic Table Leg – 330mm to 710mm Adjustable
399.00£
Dispatches in 4 - 7 Days
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Product Description
Description

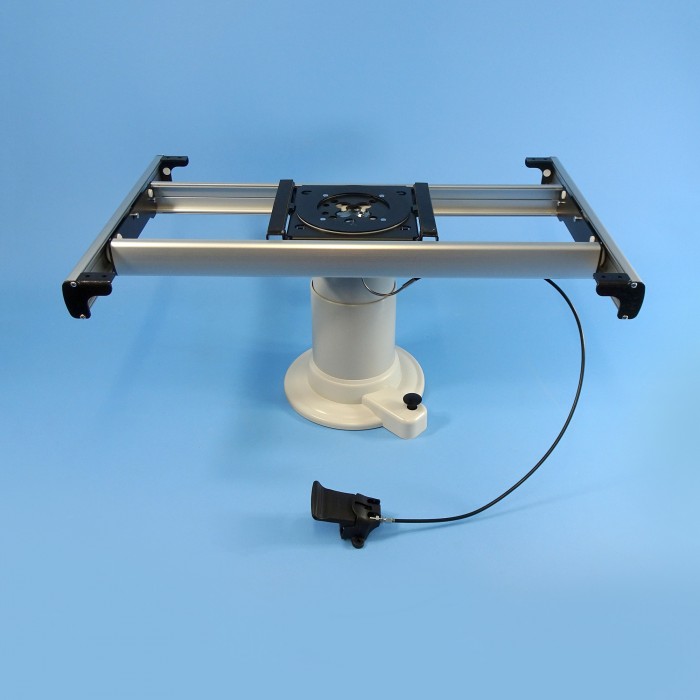

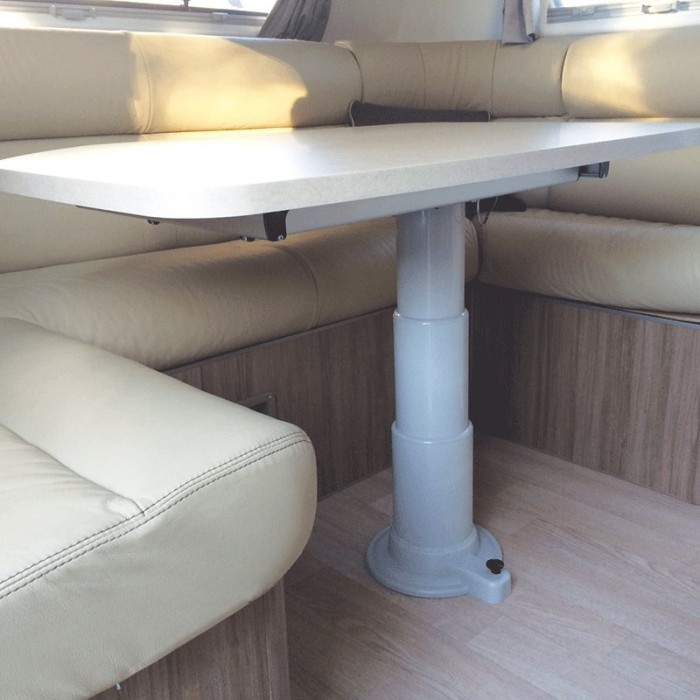

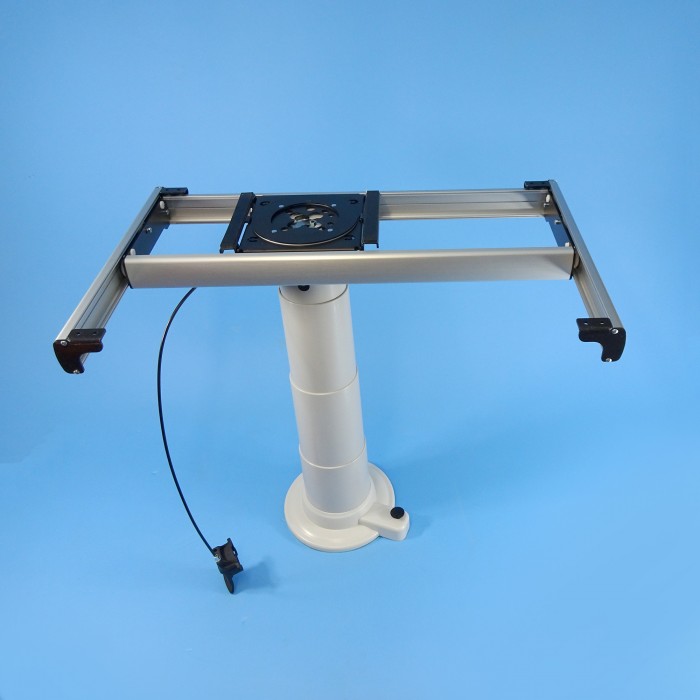

The Nuova Mapa telescopic table leg is ideal for use in caravans and RVs where the table drops to make a bed. The sliding turntable system allows the tabletop to be easily manoeuvred into many positions.

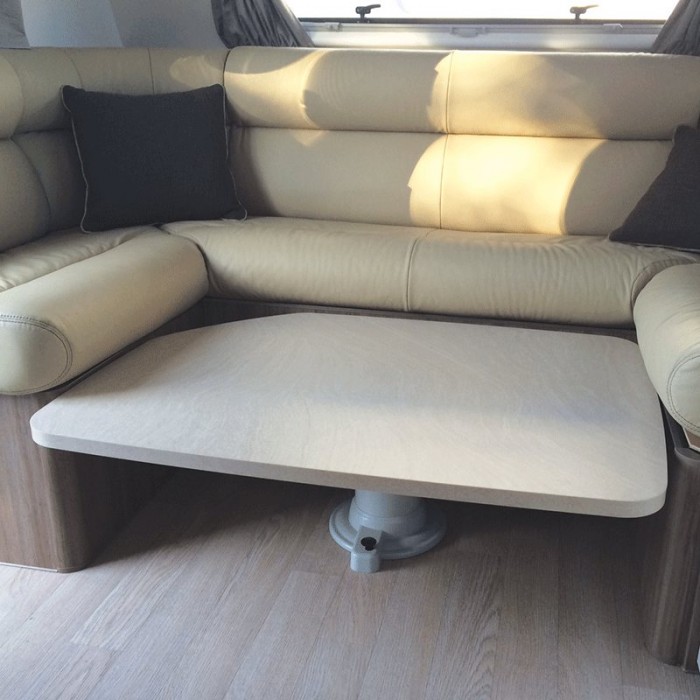

To lower into bed position just press the foot button and push top down. It will raise automatically when the foot button is pressed again.

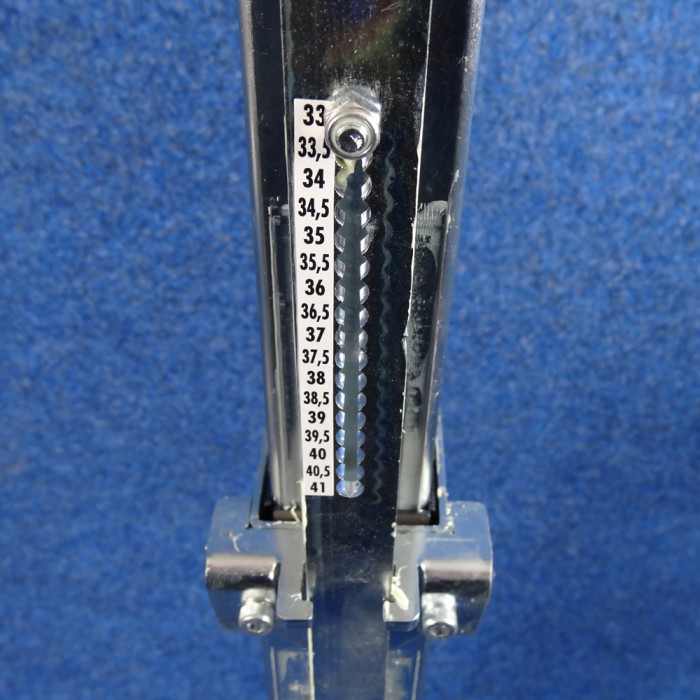

The bed position comes factory set at 330mm but this can be adjusted to suit your caravan or motorhome.
Features

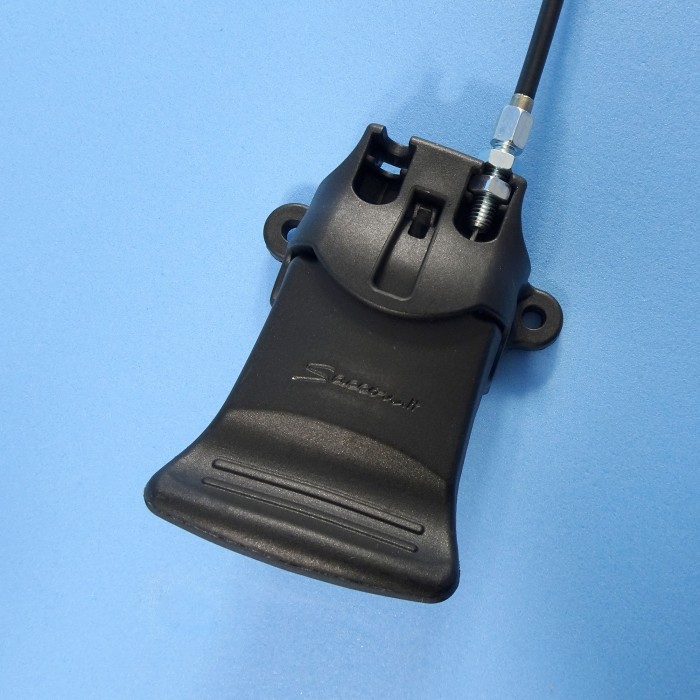

- Tabletop can slide and rotate when the under-mounted lever is squeezed.
- Top can move left or right, forward or back and swivel.
- From the centrepoint the table will slide 10 cm front & back, 20 cm left & right.

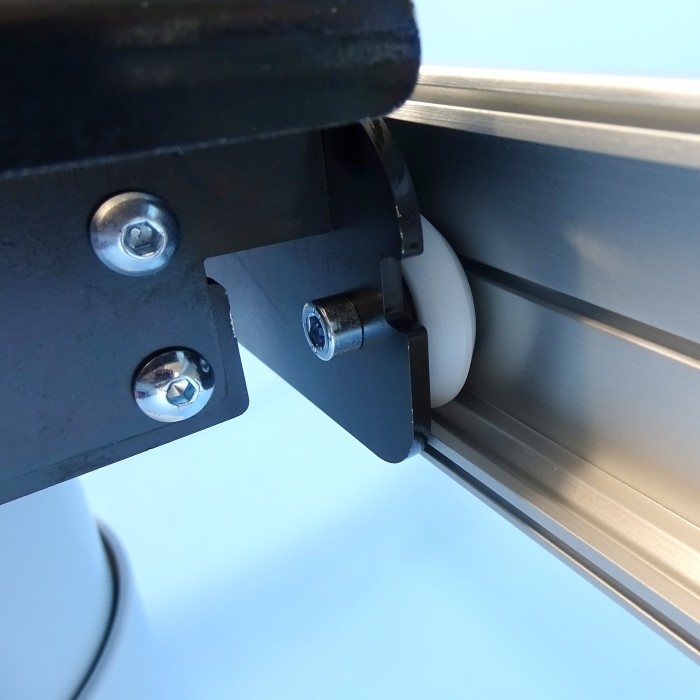

- Metal bearings make for a smooth sliding action with an aluminium sliding mechanism.
- Very solid construction.

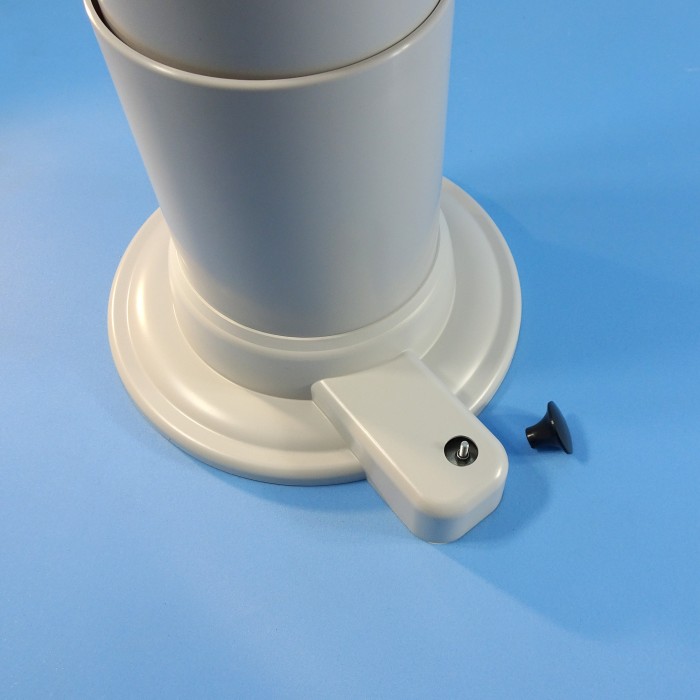

- Foot button used to release table from bed position to table position – gas strut operated.

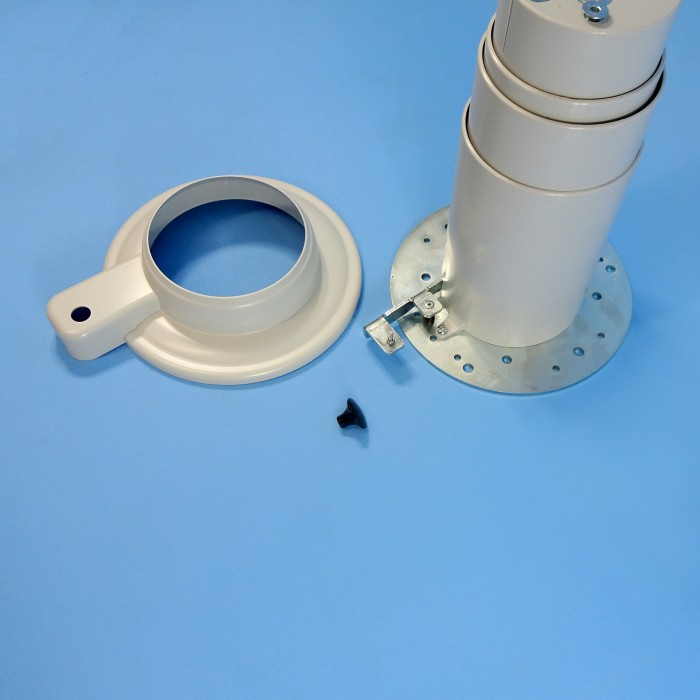

- Easy to install by screwing the base plate onto the floor.
- Adjustable bed height – see PDF for instructions.
- 1 year warranty.
Specifications
- Model: 400-02600
- Brand: Tecno – Nuova Mapa
- Original Model: 0612500ETUG (4 PART PICK)

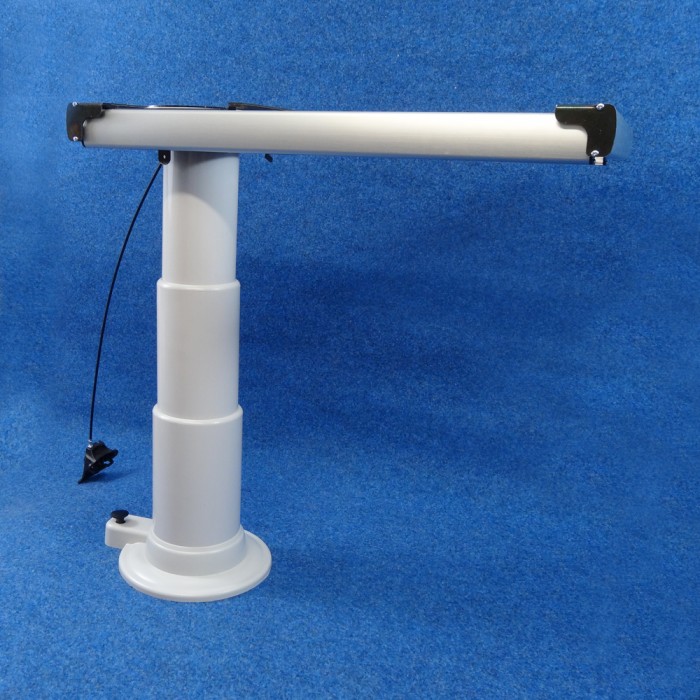

- Fully Extended Height: 710 mm (floor to the underside of table top).
- Minimum Height: 330 mm (adjustable to 410 mm).
- Base Diameter: 250 mm.
- Tabletop Bracket Dimensions: 710 mm x 440 mm (min table size).
- Base plate is 240 mm dia.
- Tools Required to set Bed Height: vice grips & 8 mm socket spanner (not included).
- Table top not included.
- Shipping Weight: 15.00 Kgs.
- Shipping Dimensions: 49 cm x 60 cm x 41 cm.
Our Comments
Due to the many ways one may wish to fix the table bottom to the floor, and also the platform in which it may be installed, there are far too many variables. As such no fixing kits are supplied, or available with these units.
It is up to the installer to decide how best to approach the installation, and procure the fastening system locally.
